Tekin - Item No. TEKTT1500
3.5 out of 5 Customer Rating

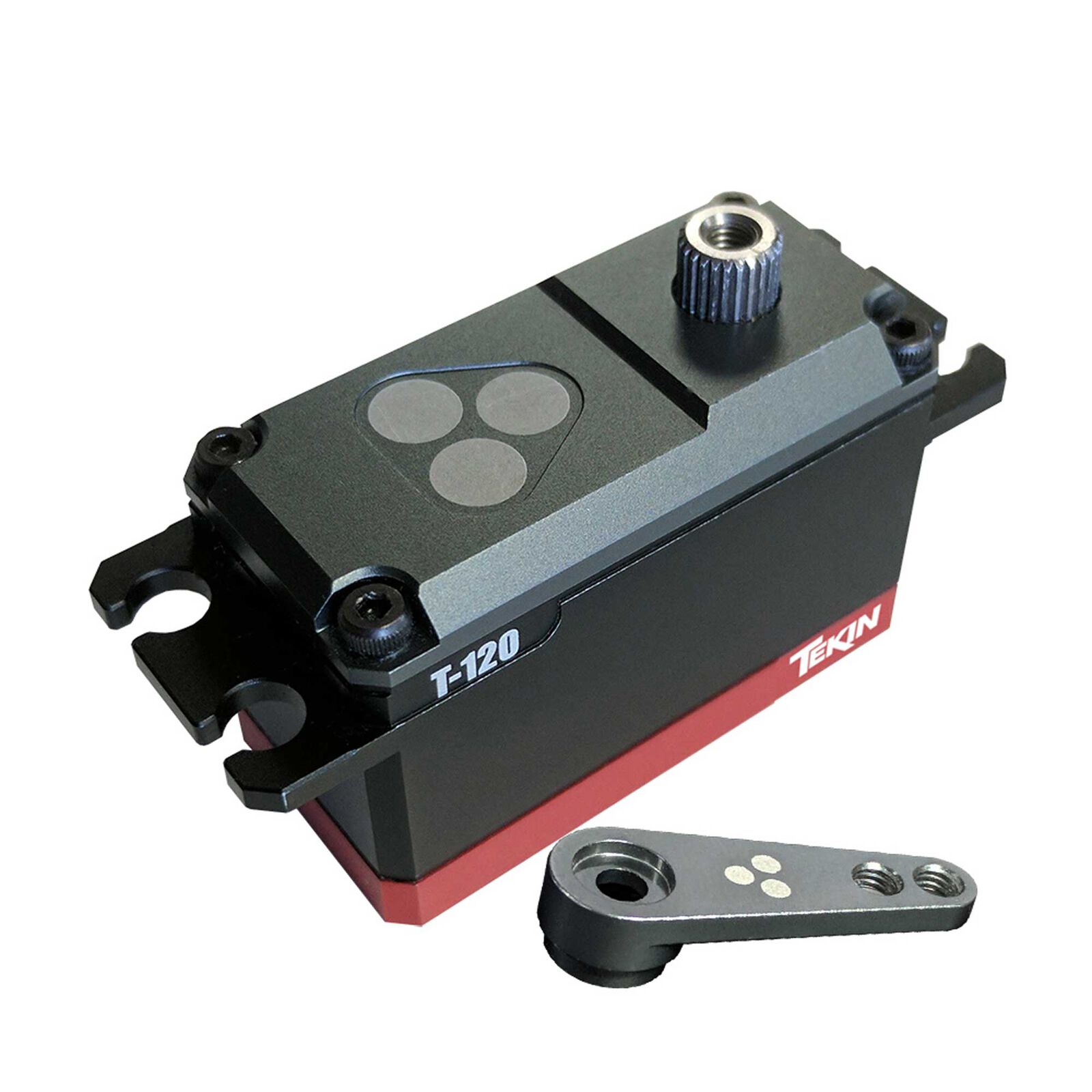

T120 Standard Low Profile Digital HV High Torque Metal Gear Servo

$159.99
RC Club points earned on this item shown at checkout.

Key Features

  • Specifically Designed for 1/12 and 1/10 Scale Applications
  • Included Aluminum 20mm Vector Servo Arm
  • Full Aluminum Servo Housing
  • LP = Low Profile Design
  • Precision Cut Full Metal Gears
  • ABEC5 Ball Bearings
  • Digital Magnetic Position Encoder
  • High Voltage Capable
  • High Torque Coreless Motor
  • 25T Output Spline
  • Programmable via HotWire Interface
  • Overload Protection Technology
  • Thermal Protection Circuitry
  • Low Voltage Alarm*
  • Quiet, Efficient, Cool Operation
  • HDAC: High Density Copper PCB's
  • *requires HotWire sold separately

Overview

Speed and accuracy combine making this T-120 Lo-Pro Servo a perfect choice when precision and quick reflexes are at work. Designed to give you the industry's highest per degree resolution steering and plenty of speed to keep that chassis where you want it. Full Metal Gear set, All Aluminum Housing, Digital Position Encoding and loads of Torque, this servo keeps you in control. Fine-tune your setup with and extensive set of adjustments via Tekin's HotWire PC Interface.

Product Specs

Product Width
0.79 in (20mm)
Servo Operating Voltage
4.8 - 8.4V (HV)
Product Length
1.57 in (40mm)
Application
1/12 and 1/10 Scale
Product Weight
1.92 oz (54.6g)
Spline Count
25-Tooth
Programmable
Yes
Servo Size Category
Standard
Part Type
Electronics
Product Height
1.06 in (27mm)
Servo Type
Digital
Maximum Servo Torque
141 oz-in (110.1kg-cm) @ 8.4V
Bushing Or Bearing
Bearing
Gear Type
Metal
