Tekin - Item No. TEKTT1505
5 out of 5 Customer Rating

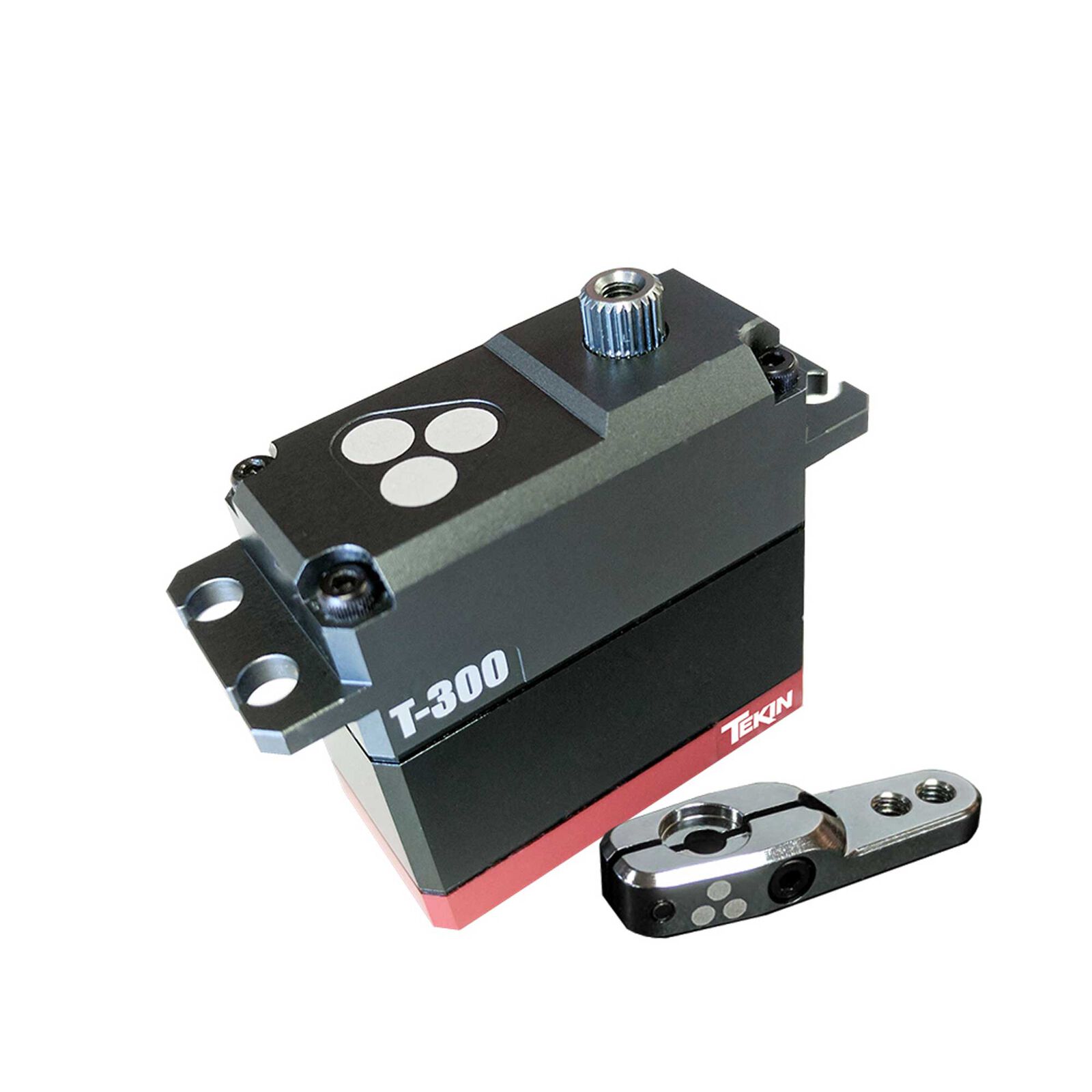

T300 Standard Digital HV High Torque Metal Gear Servo

$169.99
RC Club points earned on this item shown at checkout.
  • (1) T300 Standard Digital HV High Torque Metal Gear Servo

Key Features

  • Specifically Designed for 1/10 and 1/8 Scale Applications
  • Included Aluminum 20mm Crowbar Servo Arm
  • Full Aluminum Servo Housing
  • Precision Cut Full Metal Gears
  • ABEC5 Ball Bearings
  • Digital Magnetic Position Encoder
  • High Voltage Capable
  • High Torque Coreless Motor
  • 25T Output Spline
  • Programmable via HotWire Interface
  • Overload Protection Technology
  • Thermal Protection Circuitry
  • Low Voltage Alarm*
  • Quiet, Efficient, Cool Operation
  • HDAC: High Density Copper PCB's
  • *requires HotWire sold separately

Overview

Pick your line and pass the competition with the Tekin T-300 Servo. Designed to give you the industry's highest per degree resolution steering and plenty of speed to keep that chassis where you want it. Full Metal Gear set, All Aluminum Housing, Digital Position Encoding and loads of Torque, this servo keeps you in control. Fine-tune your setup with and extensive set of adjustments via Tekin's HotWire PC Interface.

Product Fitments

Product Specs

Product Length
1.57 in (40mm)
Maximum Servo Torque
354 oz-in (25.5kg-cm) @ 8.4V
Bushing Or Bearing
Bearing
Gear Type
Metal
Programmable
Yes
Servo Size Category
Standard
Application
1/10 and 1/8 Scale
Product Weight
2.57 oz (73g)
Spline Count
25-Tooth
Part Type
Electronics
Product Height
1.57 in (40mm)
Servo Type
Digital
Product Width
0.79 in (20mm)
Servo Operating Voltage
4.8 - 8.4V (HV)
