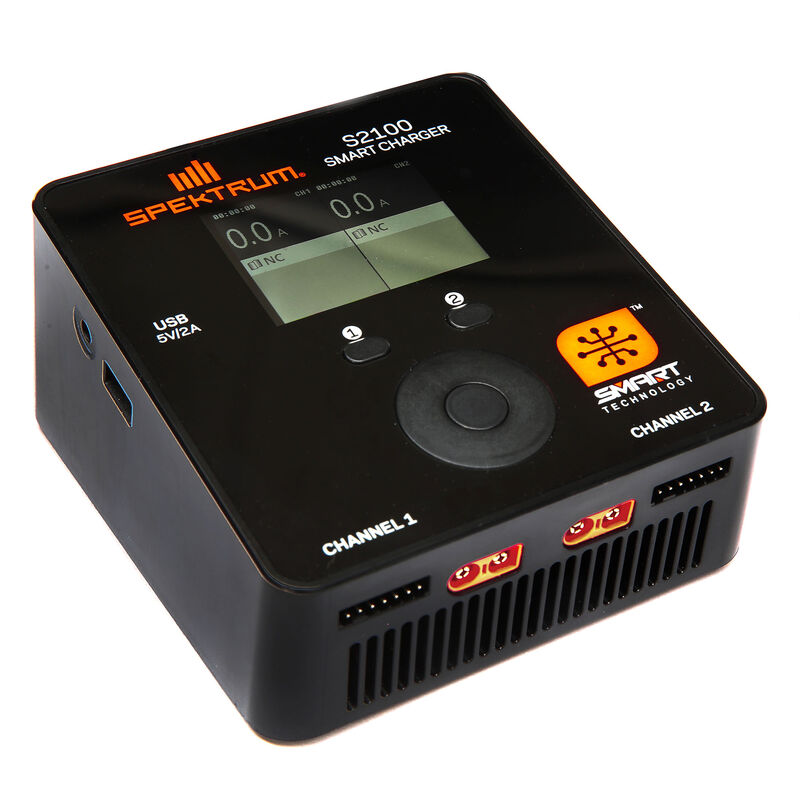

Smart S2100 AC Charger, 2x100W

S2100 G2 2x100W AC Smart Charger
Spektrum Accessories - SPMXC2000
S2100 G2 2x100W AC Smart Charger
View Alternate Product Details

Product Overview

The Spektrum™ S2100 Smart Charger is a dual-output AC Smart Charger featuring Spektrum Smart Charging technology. Small and portable, this 200W charger features the Spektrum IC3™ connector that delivers a robust connection that also reads vital battery content that relays to a bright LCD color display to clearly show unique information and log data about your Smart Battery such as how many charge cycles the pack has, and much more.

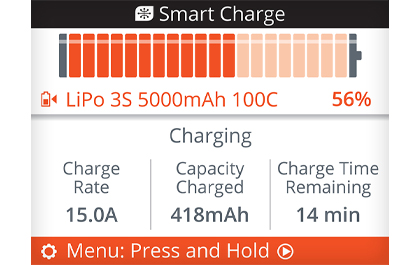

Smart Charging Technology

When connected to a Spektrum Smart Battery, unique parameters and health of your LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can set and record preferred settings, such as charge rates and self-discharge options, so that all you have to do to charge the pack is press the “Start” button. Smart technology will take care of the rest. Every Smart LiPo charger is factory assembled with the next-generation IC3™ output connector that utilizes a data transfer pin to display saved battery information directly on the LCD screen.

Smart Charging Technology

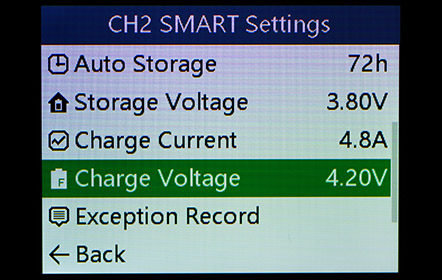

Simple and Quick

Preset charge, discharge, and storage parameters are automatically relayed from your Spektrum Smart Battery making charging as simple as pressing the “Start” button. Charge rate of individual batteries can be user customized allowing you to take full advantage of packs with faster charge ratings. The integrated microchip on each battery will remember the last charging rate you set, so the next time you plug it in, these settings will automatically populate so all you have to do is press “Start.”

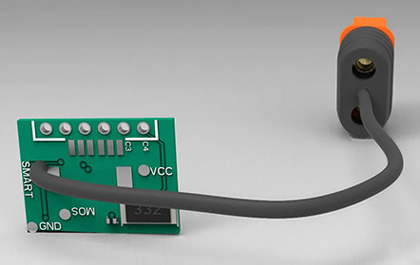

New IC3 & IC5 Connectors
IC3 & IC5 Connectors

The innovative Smart connection is made possible by an installed microchip on every battery, feeding the unique information through a data cable to the new IC3 and IC5 connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. Sprung bullets ensure a solid connection that is easy to connect and disconnect, while the convenient solder pads allow for easy installation on your device.

New IC3 & IC5 Connectors

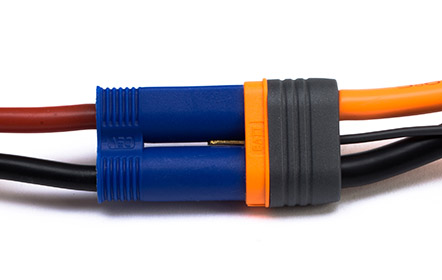

Backwards Compatible

For those using the popular EC3 and EC5 connectors, there’s no need to worry. The IC connector series is entirely backwards compatible with existing connectors so you can use your Smart Charger with older batteries, but only when connected to a Spektrum Smart Battery are all the benefits of Smart technology obvious.

Backwards Compatible

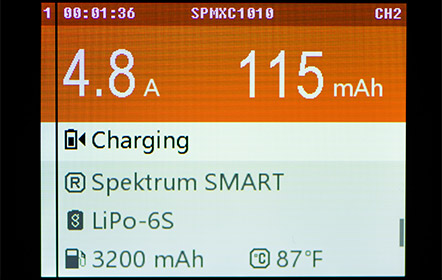

LED Display

High visibility 2.4 inch color screen brightly displays all your vital information, even in bright sunlight.

LED Display
High Powered

200W of shared power output lets you quickly charge large and high cell count batteries with ease. The charger will automatically adjust the power between both channels for each charging task. If you’re only charging on one channel you can utilize the full 200W output to charge batteries even faster.

High Powered

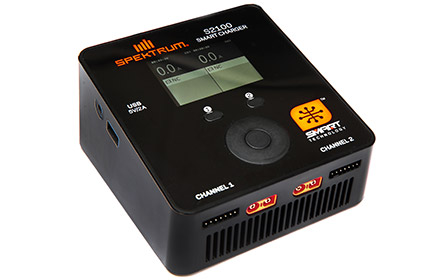

Touch Wheel interface

A clean and intuitive touch wheel interface makes it easy to navigate all the settings on your Smart Charger. This clean and simple design keeps a sleek profile that is perfect for tossing in your field bag.

Touch Wheel interface

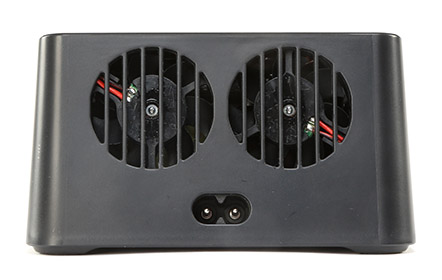

Dual Fan Cooling System

Internal dual cooling fans keep the charger at a safe and efficient operating temperature, perfect for fast charging larger batteries.

Efficient Cooling System

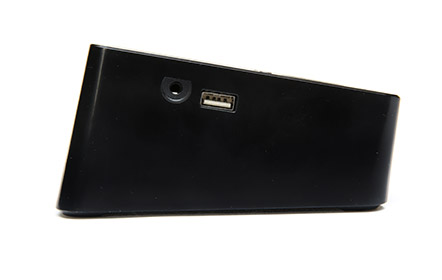

USB Port

Why stop at charging your LiPos? The integrated USB port allows you to power those other devices you bring along to the field. 5V 2A output allows you to charge your phone, monitor, or other gear quickly.

USB Port
Built in Protection

When combined with Spektrum Smart Batteries, the charger automatically recognizes battery chemistry, cell voltage, and capacity to ensure that you are always charging with correct settings, virtually eliminating the potential for charging incorrectly.

Built in Protection

Product Specs

Battery Type
Smart, Non Smart
Discharge
Yes
Display
Backlit
Input Voltage
AC 100-240V
Integrated Balancing
Yes - Internal Balancer & External Adapter
Maximum Charge Rate
10 to 14 Amps
Number of Output Ports
2
Output Connector
IC3
Part Type
Electronics
Power (watts)
100 - 199W
Power Source
AC
Product Height
2.8 in (72mm)
Product Length
4.7 in (120mm)
Product Weight
19.7 oz (558 g)
Product Width
4.3 in (108mm)
Programmable
Yes
Software Updates
Yes
Technology
Smart
USB Power out
Yes
