Spektrum Accessories - Item No. SPMXSM1600
3.8 out of 5 Customer Rating

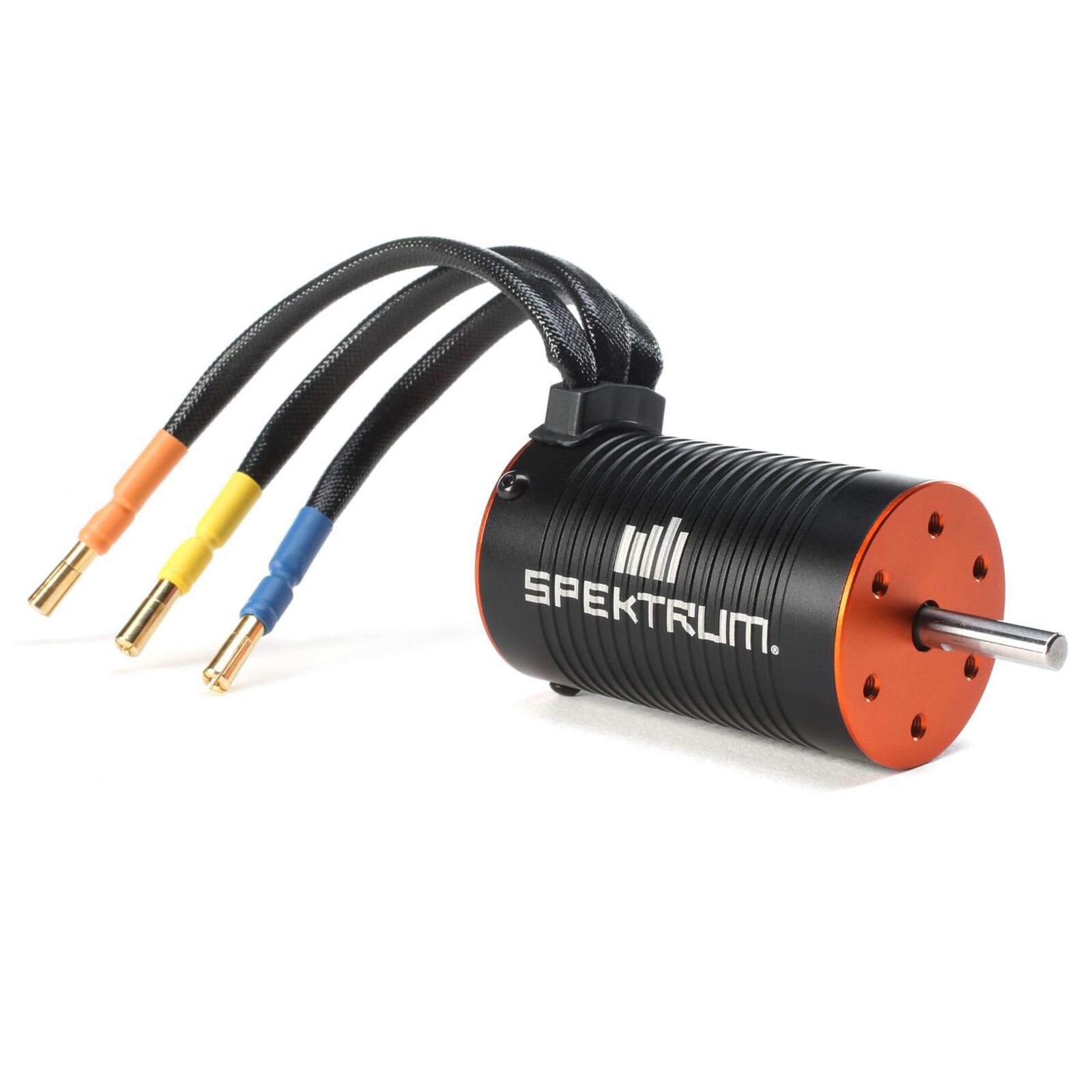

Firma 1900Kv Brushless Motor

$104.99
RC Club points earned on this item shown at checkout.

COMPLETE YOUR PRODUCT

  • Safe-D Shaft with C-Clip Locking Point to Prevent Pinion Gear Slip
  • 5mm Diameter Steel Output Shaft
  • 4mm Gold Plated Bullet Connectors
  • Firma 1900Kv Brushless Motor
  • 130A ESC

Overview

The Firma 1900Kv brushless motor is a perfect option for 1/8 scale buggy, truggy or monster trucks with a 3S-6S LiPo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 4mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 130 Smart ESC.

Features

  • Perfect upgrade for 1/8 scale racers and bashers
  • Safe-D Shaft provides a C-clip locking point to prevent pinion gear slip
  • High efficiency design
  • 6S LiPo power capable
  • High-quality 4-pole sintered rotor
  • 4mm gold plated bullet connectors
  • High-quality construction with precision ball bearings and hardened steel 5mm shaft

Product Fitments

Product Specs

Application
Upgrade for 1/8 scale racers and bashers with 3-6S Lipo powered setup
Bushing Or Bearing
Bearing
Connector Type
4mm Bullet
Efficiency
86%
Input Voltage
11.1 - 22.2V
Maximum Continuous Current
60A
Motor Class
1/8 Scale
Motor Design
Inrunner
Motor Size
4274
Motor Type
Brushless
Number of Poles
4
Outer Diameter
1.6 in (42 mm)
Output
4940W
Part Type
Electronics
Product Length
2.9" (74 mm)
Product Weight
14.67 oz (416 g)
RPM/Volt (Kv)
1900Kv
Sensored
No
Shaft Diameter
0.19" (5 mm)
Shaft Length
0.73 in (18.5 mm)
